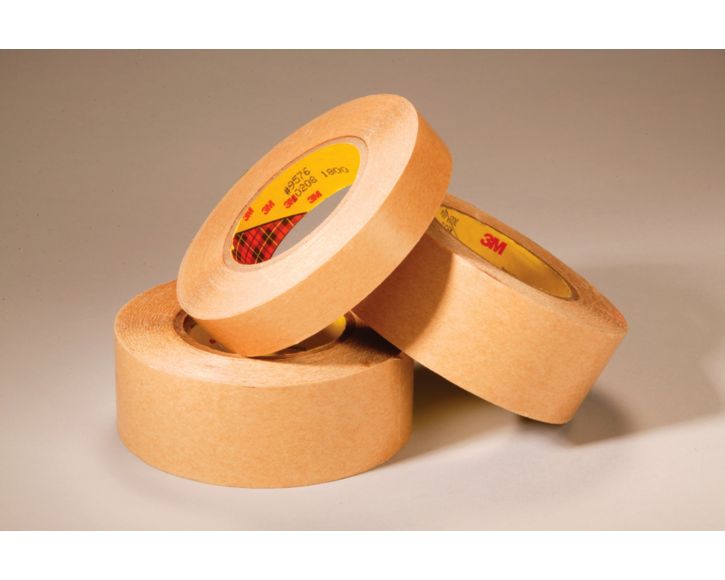

3M™ Double Coated Tape 9576, Clear, 24 in x 60 yd, 4 mil, 1 roll per case
Stock : 7000049018
List:
$613.13
/Rolls
Your Price:
$467.20
/Rolls
- Buy 5 for $452.49 each and save 3%
- Buy 10 for $434.09 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 1.
Grand Total : $467.20
Manufacturer :
3M
SKU :
70006358835
Part :
74287
UPC :
021200742873
Selling Unit :
Rolls
Stock :
7000049018
3M™ Double Coated Tape 9576 is a 4.0 mil double coated clear polypropylene with acrylic adhesive 400 on a 4 mil 60 lb tan densified kraft paper liner
Good low temperature performance and peel strength on many surfaces. Up to 250 degrees F short-term heat resistance. Excellent adhesion to uncoated papers. Clarity and UV resistance for window label applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
| Per Case | 1 roll |
|---|---|
| Master Size Width | 27 Inch |
| Master Size Length | 360 Linear Yard |
| Liner Thickness | 4 Milli-inch (mil) |
| Liner Color | Tan |
| Maximum Operating Temperature (fahrenheit) | 165 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 4 Milli-inch (mil) |
| Moisture Resistance | 8 |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 73 Degree Celsius |
| Tape Type | Double Coated |
| Uv Resistance | High |
| Type | simple |
| Total Thickness | 8 Milli-inch (mil) |
| Tape Thickness | 4 Milli-inch (mil) |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 4 Milli-inch (mil) |
| Primary Liner | 60 Densified Kraft Paper |
| Plasticizer Resistance | Low |
| Secondary Liner | Not Applicable |
| Solvent Resistance | 5 |
| Humidty Resistance | 8 |
| Faceside Adhseive Thickness (mils) | 1.5 Milli-inch (mil) |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 400 High-Tack Acrylic |
| China Rohs Below Mcv | Yes |
| Carrier Material | Polypropylene |
| Carrier Thickness (mils) | 1 Milli-inch (mil) |
| Chemical Resistance | 5 |
| UPC 11 | 02120074287 |
| Liner Type | 60 Densified Kraft |
| UPC Number | 021200742873 |
| Shear Strength At 72 Degrees F | 5 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 8 mil |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Thickness Metric | 0.2 mm |
| Width | 24 in |
| Width Metric | 609.6 mm |
| Benefit1 | |
| Benefit2 | High-tack, double-coated tape with proven performance for paper web splicing and general purpose bonding |
| Benefit3 | Excellent flying splice and core starting characteristics. Wet grab. Process speeds in excess of 2000 ft per minute |
| Benefit4 | Paper and Print, Commercial Printing, General Industrial |
| Benefit5 | Used for bonding, attaching, joining affixing. Used for splicing papers, films and foils. |
| Color 1 | Clear |
| Dimension 1 | 24 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 5 |
| Adhesion To Hse | 5 |
| Adhesion To Lse | 5 |
| Adhesion To Metal | 5 |
| Adhesive Peel Ultimate | 5 |
| Adhesive Thickness (mils) | 4 Milli-inch (mil) |
| Adhesive Type | 400 High-Tack Acrylic |
| Backside Adhesive Thickness (mils) | 1.5 Milli-inch (mil) |
| Backside Adhesive Type | 400 High-Tack Acrylic |
| TDS Files | 3M/tds/70070937399.pdf |
