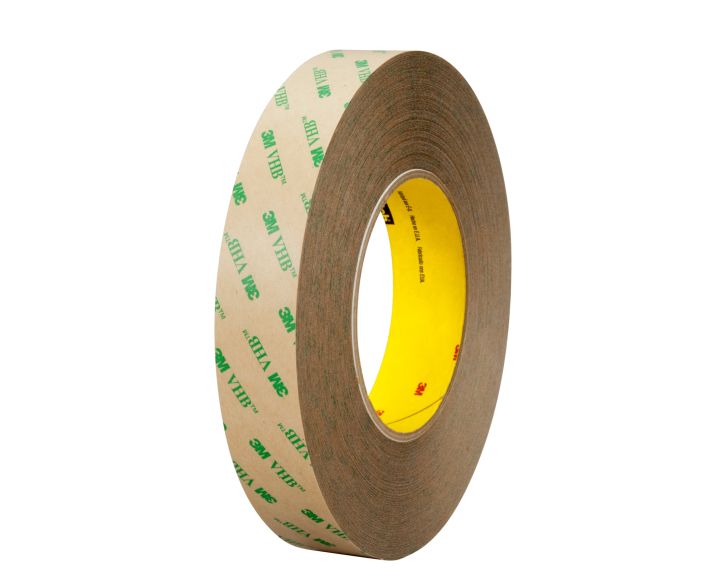

3M™ VHB™ Adhesive Transfer Tape F9469PC, Clear, 1 in x 60 yd, 5 mil, 36 rolls per case
Stock : 7000115598
List:
$82.87
/Rolls
Your Price:
$63.15
/Rolls
- Buy 180 for $61.16 each and save 3%
- Buy 360 for $58.67 each and save 7%
Availability:
In stock
Ships In 7-10 Days
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 36.
Grand Total : $2,273.40
Manufacturer :
3M
SKU :
70006110798
Part :
13971
UPC :
021200139710
Selling Unit :
Rolls
Stock :
7000115598
5.0 mil 100MP high performance acrylic with 4.2 mil 58 lb polycoated kraft paper liner - printed.
3M™ VHB™ Adhesive Transfer Tapes utilize the high performance of 3M™ Adhesive 100MP, which has excellent long-term holding power with much higher adhesion strength than typical pressure sensitive adhesive systems.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
| Per Case | 36 |
|---|---|
| Liner Thickness | 4.2 Milli-inch (mil) |
| Maximum Operating Temperature (fahrenheit) | 500 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Moisture Resistance | High |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 260 Degree Celsius |
| Tape Type | Adhesive Transfer |
| Uv Resistance | High |
| Type | simple |
| Product Form | Roll |
| Primary Liner | 58 Polycoated Kraft Paper |
| Plasticizer Resistance | Medium |
| Restriction | Bulk |
| Solvent Resistance | 10 |
| Humidty Resistance | High |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 100MP High Performance Acrylic |
| China Rohs Below Mcv | Yes |
| Chemical Resistance | 10 |
| UPC 11 | 02120013971 |
| Liner Type | 58 Polycoated Kraft Paper |
| UPC Number | 021200139710 |
| Shear Strength At 72 Degrees F | 10 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 5 mil |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Thickness Metric | 0.1 mm |
| Width | 1 in |
| Width Metric | 25.4 mm |
| Benefit1 | |
| Benefit2 | Excellent long-term holding power with higher adhesion strength than typical PSAs |
| Benefit3 | Transparent and ideal for use in many interior and exterior industrial applications to replace rivets, spot welds, liquid adhesives and other permanent fasteners |
| Benefit4 | Electronics, General Industrial, Appliances, Medical Devices, Power Tools, Automotive, Transportation, Aircraft, Airplane |
| Benefit5 | Adhering, joining, affixing, bonding, mounting, holding, laminating, and attachin |
| Color 1 | Clear |
| Dimension 1 | 1 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 2 |
| Adhesion To Hse | 7 |
| Adhesion To Lse | 1 |
| Adhesion To Metal | 10 |
| Adhesive Peel Ultimate | 10 |
| Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Adhesive Type | 100MP High Performance Acrylic |
| Brand | VHB™ |
| TDS Files | 3M/tds/70071113875.pdf |
