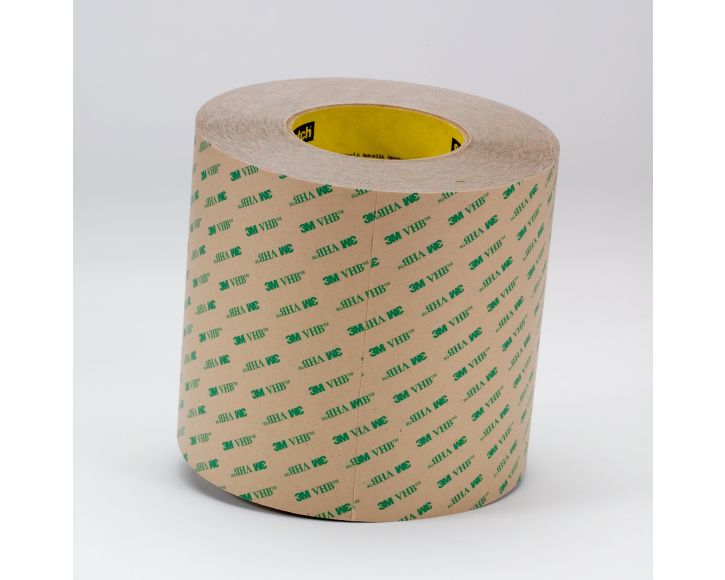

3M™ VHB™ Adhesive Transfer Tape F9460PC, Clear, 24 in x 180 yd, 2 mil, 1 roll per case
Stock : 7010333882
List:
$4,559.47
/Rolls
Your Price:
$3,474.31
/Rolls
- Buy 10 for $3,364.89 each and save 3%
- Buy 20 for $3,228.10 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 2.
Grand Total : $6,948.62
Manufacturer :
3M
SKU :
70006223294
Part :
37568
UPC :
021200375682
Selling Unit :
Rolls
Stock :
7010333882
3M™ VHB™ Adhesive Transfer Tape F9460PC is a 2.0 mil 100MP adhesive with 4.2 mil 58 lb polycoated kraft paper liner.
3M™ VHB™ Adhesive Transfer Tapes utilize the high performance of 3M™ Adhesive 100MP, which has excellent long-term holding power with much higher adhesion strength than typical pressure sensitive adhesive systems.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
| Per Case | 1 |
|---|---|
| Liner Thickness | 4.2 Milli-inch (mil) |
| Maximum Operating Temperature (fahrenheit) | 500 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Moisture Resistance | High |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 260 Degree Celsius |
| Tape Type | Adhesive Transfer |
| Uv Resistance | High |
| Type | simple |
| Product Form | Roll |
| Primary Liner | 58 Polycoated Kraft Paper |
| Plasticizer Resistance | Medium |
| Solvent Resistance | 10 |
| Humidty Resistance | High |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 100MP High Performance Acrylic |
| China Rohs Below Mcv | Yes |
| Chemical Resistance | 10 |
| UPC 11 | 02120037568 |
| Liner Type | 58 Polycoated Kraft Paper |
| UPC Number | 021200375682 |
| Shear Strength At 72 Degrees F | 10 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 2 mil |
| Length | 180 yd |
| Length Metric | 164.59 m |
| Thickness Metric | 0.05 mm |
| Width | 24 in |
| Width Metric | 609.6 mm |
| Benefit1 | |
| Benefit2 | Excellent long-term holding power with higher adhesion strength than typical PSAs |
| Benefit3 | Transparent and ideal for use in many interior and exterior industrial applications to replace rivets, spot welds, liquid adhesives and other permanent fasteners |
| Benefit4 | Electronics, General Industrial, Appliances, Medical Devices, Power Tools, Automotive, Transportation, Aircraft, Airplane |
| Benefit5 | Adhering, joining, affixing, bonding, mounting, holding, laminating, and attachin |
| Color 1 | Clear |
| Dimension 1 | 24 in |
| Dimension 2 | 180 yd |
| Adhesion To Foam | 2 |
| Adhesion To Hse | 7 |
| Adhesion To Lse | 1 |
| Adhesion To Metal | 10 |
| Adhesive Peel Ultimate | 10 |
| Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Adhesive Type | 100MP High Performance Acrylic |
| Brand | VHB™ |
| TDS Files | 3M/tds/70071113875.pdf |
