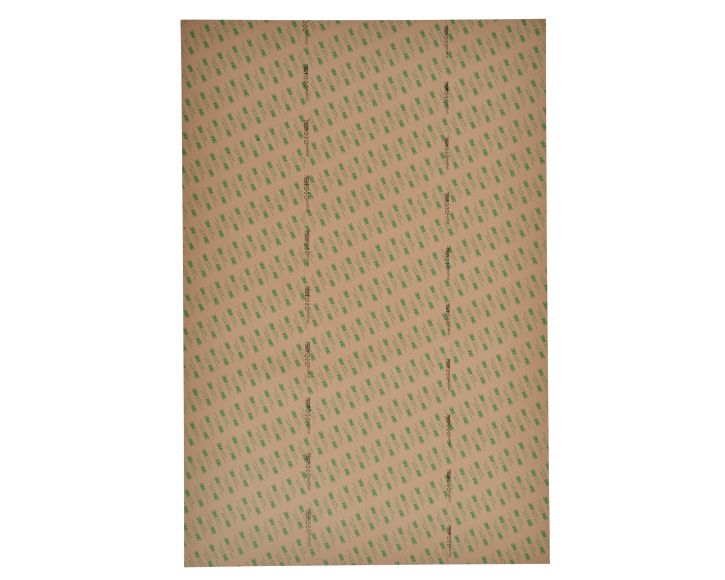

3M™ Membrane Switch Spacer 7956MP, Clear, 24 in x 36 in, 6 mil, 100 sheets per case
Stock : 7000001570
List:
$1,841.44
/Box
Your Price:
$1,403.18
/Box
- Buy 5 for $1,358.98 each and save 3%
- Buy 10 for $1,303.74 each and save 7%
Availability:
In stock
Ships In 7-10 Days
Quantity Guidelines:
Priced per Box s, must be ordered in multiples of 1.
Grand Total : $1,403.18
Manufacturer :
3M
SKU :
70016034913
Part :
68188
UPC :
021200681882
Selling Unit :
Box
Stock :
7000001570
3M™ Membrane Switch Spacer 7956MP is a 2.0 mil 200MP high-performance acrylic adhesive double coated on each side of 2.0 mil polyester film carrier with double liner of 4.2 mil 58 lb moisture resistant lay-flat polycoated kraft
For circuit separation; provides exceptionally high cohesive strength and excellent resistance to extreme temperatures, moisture, UV light and chemicals.
Strong adhesives for long lasting switch performance. 3M has designed a line of membrane switch systems that will prevail against the test of time, withstand stress of actuations and stay strong in a variety of environments and the life of the switch.
Strong adhesives for long lasting switch performance. 3M has designed a line of membrane switch systems that will prevail against the test of time, withstand stress of actuations and stay strong in a variety of environments and the life of the switch.
| Per Case | 100 sheets |
|---|---|
| Master Size Width | 24 Inch |
| Master Size Length | 36 Inch |
| Nominal Tape Thickness (mils) W/o Liner | 6 Milli-inch (mil) |
| Moisture Resistance | High |
| Uv Resistance | High |
| Type | simple |
| Total Thickness With Liner | 14.4 Milli-inch (mil) |
| Product Form | Box |
| Primary Liner Thicknes (mils) | 4.2 Milli-inch (mil) |
| Primary Liner | 58 Polycoated Kraft Paper |
| Plasticizer Resistance | Low |
| Secondary Liner | 58 Polycoated Kraft Paper |
| Solvent Resistance | 9 |
| Secondary Liner Thickness (mils) | 4.2 Milli-inch (mil) |
| Humidty Resistance | High |
| Faceside Adhseive Thickness (mils) | 2 Milli-inch (mil) |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 200MP High Performance Acrylic |
| China Rohs Below Mcv | Yes |
| Carrier Material | Polyester Film |
| Carrier Thickness (mils) | 2 Milli-inch (mil) |
| Chemical Resistance | 9 |
| UPC 11 | 02120068188 |
| UPC Number | 021200681882 |
| Length | 36 in |
| Length Metric | 0.91 m |
| Width | 24 in |
| Width Metric | 609.6 mm |
| Benefit1 | |
| Benefit2 | Ideal for circuit separation in switches until actuation. Easy to die-cut and process. Use for steel rule die-cutting. Used for graphic attachment. |
| Benefit3 | Excellent moisture and solvent resistance. High temperature resistance. High shear strength accomodates the stresses of repeated actuation. UV resistant. Easy to apply. Not messy. Easily die-cutable. Use for selective die-cutting. |
| Benefit4 | Appliance, Electronics, Industrial Controls Equipment, Medical Equipment, Medical Devices, Automotive, ATM Machines, Gas Pumps |
| Benefit5 | Interfacing between human and equipment, key pad entering, data entering, switching, spacing, spacer, advertising, pressing |
| Color 1 | Clear |
| Dimension 1 | 24 in |
| Dimension 2 | 36 in |
| Adhesion To Foam | 3 |
| Adhesion To Hse | 9 |
| Adhesion To Lse | 1 |
| Adhesion To Metal | 10 |
| Adhesive Color | Clear |
| Backside Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Backside Adhesive Type | 200MP High Performance Acrylic |
| MSDS Sheets | 3M/msds/70016034913.pdf |
| TDS Files | 3M/tds/70070711950.pdf |
