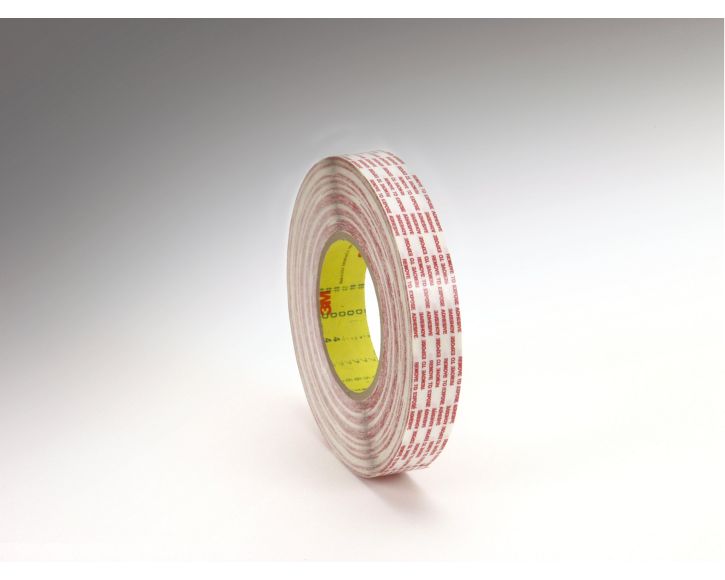

3M™ Double Coated Tape Extended Liner 476XL, Translucent, 3/4 in x 60 yd, 6 mil, 48 rolls per case
Stock : 7010334473
List:
$19.47
/Rolls
Your Price:
$14.84
/Rolls
- Buy 240 for $14.37 each and save 3%
- Buy 480 for $13.79 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 48.
Grand Total : $712.32
Manufacturer :
3M
SKU :
70006282357
Part :
43490
UPC :
021200434907
Selling Unit :
Rolls
Stock :
7010334473
3M™ Double Coated Tape Extended Liner 476XL is a synthetic rubber adhesive with polypropylene carrier and 60 lb densified kraft paper liner. Medium temperature and solvent resistance, high HSE and LSE. 6 mil thick with 3.7 mil liner.
Up to 200 degrees F short-term heat resistance. Good adhesion to low surface energy substrates. For indoor and room temperature applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
| Per Case | 48 |
|---|---|
| Maximum Operating Temperature (fahrenheit) | 120 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 6 Milli-inch (mil) |
| Moisture Resistance | 9 |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 49 Degree Celsius |
| Uv Resistance | Low |
| Type | simple |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 3 Milli-inch (mil) |
| Primary Liner Color | White |
| Primary Liner | 42.5 Densified Kraft Paper |
| Plasticizer Resistance | Not Applicable |
| Solvent Resistance | 2 |
| Humidty Resistance | 9 |
| Faceside Adhseive Thickness (mils) | 3 Milli-inch (mil) |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 760 Synthetic Rubber |
| China Rohs Below Mcv | Yes |
| Carrier Material | Polypropylene Film |
| Carrier Thickness (mils) | 1 Milli-inch (mil) |
| Chemical Resistance | 2 |
| UPC 11 | 02120043490 |
| UPC Number | 021200434907 |
| Shear Strength At 72 Degrees F | 10 Pound-Force Per Square Inch |
| Color | Translucent |
| Thickness | 9 mil |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Thickness Metric | 0.2 mm |
| Width | 0.75 in |
| Width Metric | 19.05 mm |
| Benefit1 | |
| Benefit2 | Dry edge, finger lift edge, convenience. Easy liner starting and removal. Ideal for automated tape application equipment. Tack free tape roll edges for ease of use and reduced equipment maintenance. |
| Benefit3 | General purpose adhesive transfer and double coated tapes with extended liners used on a variety of high surface energy and low surface energy HSE LSE materials such as coated and uncoated papers, films, plastics, foams and metals. |
| Benefit4 | Pharmaceutical, Medical, Paper and Print, Commercial Printing, Packaging, POP Point of Purchase, General Industrial |
| Benefit5 | Quick stick, immediate bond applications. Used for sealing, splicing, bonding, mounting, attaching, holding, affixing, joining, and laminating. Paper to paper applications, small packaging, pharmaceutical outserts, seals flaps on bags or envelopes. Used o |
| Color 1 | Translucent |
| Dimension 1 | 3/4 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 2 |
| Adhesion To Hse | High |
| Adhesion To Lse | High |
| Adhesion To Metal | Medium-High |
| Adhesive Peel Ultimate | 9 |
| Backside Adhesive Thickness (mils) | 3 Milli-inch (mil) |
| Backside Adhesive Type | 760 Synthetic Rubber |
| TDS Files | 3M/tds/extended_liner_7038439.pdf |
