$39.68
Availability: Make-to-order Ships in approximately 14 days.
- Buy 60 for $38.44 each and save 3%
- Buy 120 for $36.87 each and save 7%

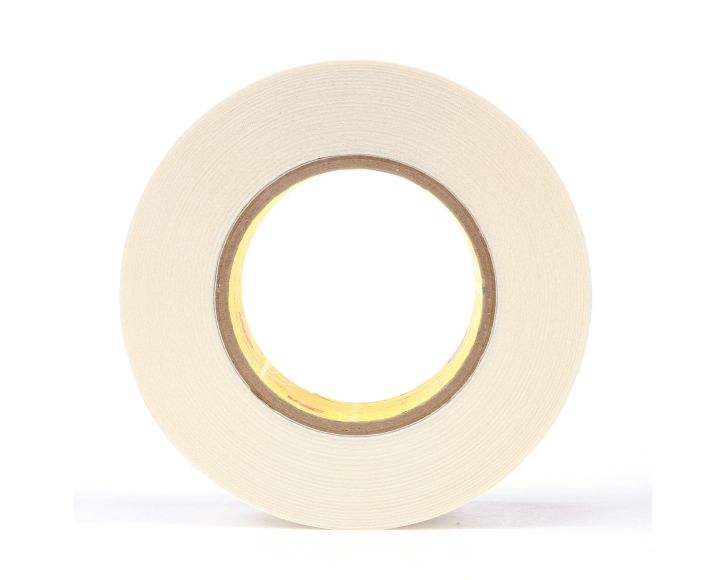

3M™ Double Coated Tape 9579 is a 9.0 mil double coated high density polyethylene with rubber adhesive 760 on a 62 lb white densified kraft liner
Manufacturer
3M
SKU
70006249000
Selling Unit
Rolls
Part
39619
UPC
021200396199
Stock
7010373864
Grand Total : $476.16
Up to 200 degrees F short-term heat resistance. Good adhesion to low surface energy substrates. For indoor and room temperature applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
stock | 7010373864 |
---|---|
Part Number | 39619 |
UPC | 021200396199 |
Unit of Measure | Rolls |
UPC 11 | 02120039619 |
UPC Number | 021200396199 |
Color | White |
Thickness | 13 mil |
Length | 36 yd |
Length Metric | 32.91 m |
Thickness Metric | 0.3 mm |
Width | 3 in |
Width Metric | 76.2 mm |
Benefit1 | |
Benefit2 | High initial adhesion. Excellent quick stick |
Benefit3 | Good adhesion to low surface energy substrates. For indoor and room temperature applications. Core starting on metal cores. |
Benefit4 | General Industrial |
Benefit5 | Used for bonding, attaching, joining affixing. Core starting on metal cores. |
Color 1 | White |
Dimension 1 | 3 in |
Dimension 2 | 36 yd |
Adhesion To Foam | 2 |
Adhesion To Hse | 9 |
Adhesion To Lse | 9 |
Adhesion To Metal | 8 |
Adhesive Peel Initial | 7 |
Adhesive Peel Ultimate | 9 |
Adhesive Thickness (mils) | 9 Milli-inch (mil) |
Adhesive Type | 760 Synthetic Rubber |
Backside Adhesive Thickness (mils) | 3 Milli-inch (mil) |
Backside Adhesive Type | 760 Synthetic Rubber |
Carrier Color | White |
Carrier Material | HDPE |
Carrier Thickness (mils) | 3 Milli-inch (mil) |
Chemical Resistance | 2 |
China Rohs Below Mcv | Yes |
Type | simple |
Eu Rohs Compliant | Yes |
Faceside Adhseive Thickness (mils) | 3 Milli-inch (mil) |
Faceside Adhseive Type | 760 Synthetic Rubber |
Humidty Resistance | 9 |
Liner Thickness | 3.7 Milli-inch (mil) |
Liner Type | 62 Densified Kraft |
Master Size Length | 360 Linear Yard |
Master Size Width | 27 Inch |
Maxmum Operating Temperature (celsius) | 49 Degree Celsius |
Maximum Operating Temperature (fahrenheit) | 120 Degree Fahrenheit |
Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
Moisture Resistance | 9 |
Nominal Adhesive Thickness (mils) | 9 Milli-inch (mil) |
Plasticizer Resistance | Low |
Primary Liner | 62 Densified Kraft Paper |
Primary Liner Thicknes (mils) | 3.7 Milli-inch (mil) |
Product Form | Roll |
Secondary Liner | Not Applicable |
Shear Strength At 72 Degrees F | 10 Pound-Force Per Square Inch |
Solvent Resistance | 2 |
Tape Thickness | 9 Milli-inch (mil) |
Tape Type | Double Coated |
Total Thickness | 13 Milli-inch (mil) |
Uv Resistance | 4 |
Restriction | Bulk |
Per Case | 12 rolls |
TDS Files | 3M/tds/9579_dc_7088260.pdf |
