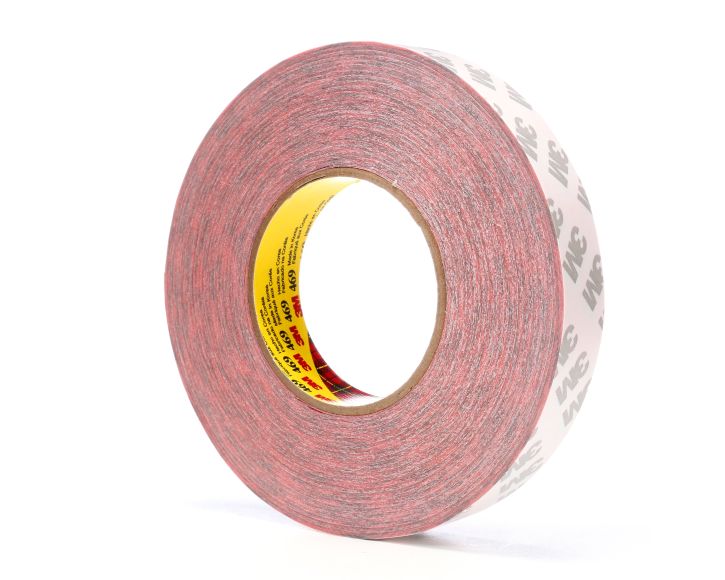

3M™ Double Coated Tape 469, Red, 1 in x 60 yd, 36 Rolls/Case
Stock : 7100222615
List:
$27.20
/Rolls
Your Price:
$20.73
/Rolls
- Buy 180 for $20.07 each and save 3%
- Buy 360 for $19.26 each and save 7%
Availability:
In stock
Ships In 7-10 Days
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 36.
Grand Total : $746.28
Manufacturer :
3M
SKU :
70006230828
Part :
38391
UPC :
00638060405970
Selling Unit :
Rolls
Stock :
7100222615
3M™ Double Coated Tape 469 is a 5.5 mil red double coated tissue tape with acrylic adhesive 330 on a 5 mil 72 lb densified kraft paper liner
Up to 350 degrees F short-term heat resistance. Medium firm adhesive features quick stick and excellent heat resistance.
This broad line of tapes features pressure sensitive adhesive on front and back for bonding a wide variety of surfaces in many applications.
| Per Case | 36 rolls |
|---|---|
| Liner Thickness | 5 Milli-inch (mil) |
| Liner Color | White |
| Maximum Operating Temperature (fahrenheit) | 200 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 5.5 Milli-inch (mil) |
| Moisture Resistance | 9 |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 93 Degree Celsius |
| Tape Type | Double Coated |
| Uv Resistance | 7 |
| Type | simple |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 5 Milli-inch (mil) |
| Primary Liner | 72 Densified Kraft Paper |
| Plasticizer Resistance | Low |
| Restriction | Bulk |
| Solvent Resistance | 8 |
| Humidty Resistance | 9 |
| Faceside Adhseive Thickness (mils) | 2.7 Milli-inch (mil) |
| Faceside Adhseive Type | 340 High-Bond Acrylic |
| Carrier Material | Tissue |
| Chemical Resistance | 8 |
| UPC 11 | 02120038391 |
| Liner Type | 72 Densified Kraft Paper |
| UPC Number | 021200383915 |
| Shear Strength At 72 Degrees F | 6 Pound-Force Per Square Inch |
| Color | Red |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Width | 1 in |
| Width Metric | 25.4 mm |
| Benefit1 | |
| Benefit2 | High tack, excellent adhesion to most paper stocks. Good high temperature performance. |
| Benefit3 | Double coated tape for use in printing applications such as splicing and core starting |
| Benefit4 | Paper and Print, Commercial Printing |
| Benefit5 | Used for core starting and splicing. Corrugated splicing applications. Paper to paper applications and flexo printing. |
| Color 1 | Red |
| Dimension 1 | 1 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 4 |
| Adhesion To Hse | 6 |
| Adhesion To Lse | 5 |
| Adhesion To Metal | 6 |
| Adhesive Peel Ultimate | 7 |
| Adhesive Thickness (mils) | 5.5 Milli-inch (mil) |
| Adhesive Type | 340 High-Bond Acrylic |
| Backside Adhesive Thickness (mils) | 2.7 Milli-inch (mil) |
| Backside Adhesive Type | 340 High-Bond Acrylic |
| TDS Files | 3M/tds/70070938504.pdf |
