$190.02
Availability: Make-to-order with estimated 14 day lead time
- Buy 80 for $184.04 each and save 3%
- Buy 160 for $176.55 each and save 7%
Manufacturer
3M
SKU
70000229354
Selling Unit
Rolls
Part
65820
UPC
00051125658201
Stock
7010331859
Grand Total : $3,040.32

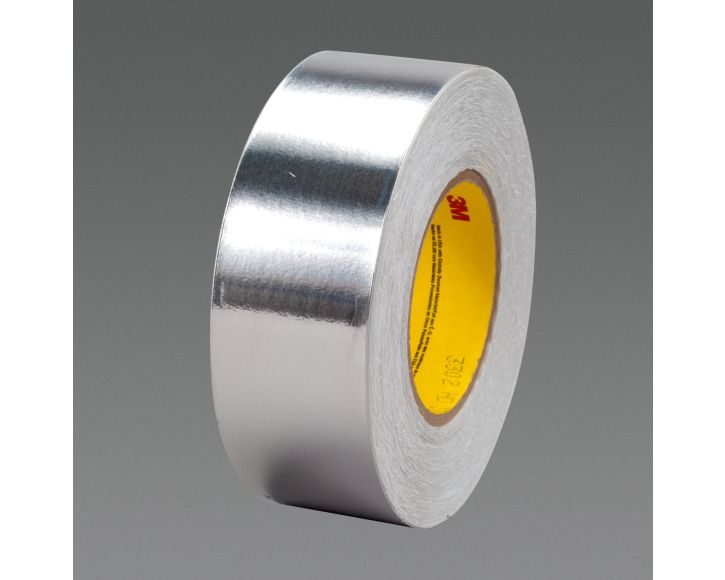

High Strength Aluminum Foil Tape
3M™ Conductive Aluminum Foil Tape 3302 is a 2 mil aluminum foil backed tape consisting of a high strength, dead soft aluminum foil backing and a conductive acrylic adhesive. This tape resists flame, moisture, weather, UV degradation and many chemicals. It is a thermally conductive tape ideal for heating and cooling efficiency. It helps reflect heat and light and is malleable to conform to irregular or uneven surfaces. This tape is a durable option for conductive applications and EMI and RFI shielding applications in the electronics industry. A wide temperature range (from 0°F/-18°C to 225°F/107°C) allows this tape to be used in a variety of low and high temperature applications.
Suggested Applications
Printed circuit manufacture and repair
Shielding applications in the electronics industry
Low level EMI and RFI shielding applications
Conductive Adhesive that "Wets Out"
3M™ Conductive Aluminum Foil Tape 3302 is coated with an aggressive conductive acrylic adhesive system that bonds well to a diverse selection of materials, including low surface energy materials and those with difficult textures. It has good "wetting out" capabilities to all surfaces. This tape is mounted on a glassing paper release liner to help preserve the adhesive prior to adhesion and assist in the application of the tape. Once bonded, this tape provides a thermally conductive bond that is ideal for heating and cooling efficiency.
stock | 7010331859 |
---|---|
Part Number | 65820 |
UPC | 00051125658201 |
Unit of Measure | Rolls |
UPC11 | 05112565820 |
Benefit1 | High strength aluminum foil backing is durable and malleable to conform to uneven or irregular surfaces |
Benefit2 | Acrylic adhesive features good "wetting out" capabilities to all surfaces |
Benefit3 | Bonds extremely well to low surface energy materials and difficult textured surfaces |
Benefit4 | Aluminum foil backing works well for EMI/RFI shielding applications |
Benefit5 | Performs continuously over an extremely wide temperature range from 0 |
Dimension 1 | 4IN |
Dimension 2 | 36YD |
Type | simple |
Per Inner Carton | 1 |
