$196.12
Availability: Make-to-order Ships in approximately 14 days.
- Buy 720 for $189.94 each and save 3%
- Buy 1440 for $182.22 each and save 7%

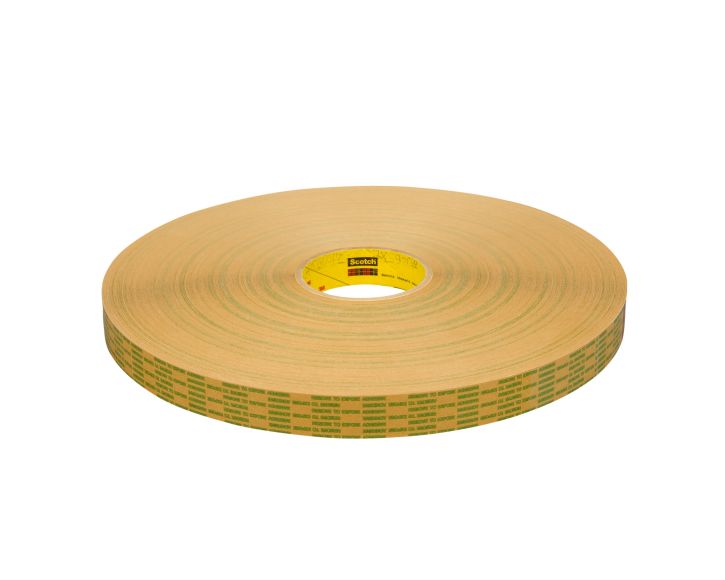

3M™ Adhesive Transfer Tape Extended Liner 465XL is a 2.0 mil, general purpose, extended liner, pressure sensitive acrylic adhesive transfer tape ATT with a densified kraft paper liner. Acrylic Adhesive 400 family.
Manufacturer
3M
SKU
70006132685
Selling Unit
Rolls
Part
12976
UPC
021200129766
Stock
7010372430
Grand Total : $28,241.28
3M™ Extended Liner Tapes have a liner that extends beyond the width of the adhesive to provide easy liner starting and removal. A variety of adhesives are available from high-tack for coated papers and plastics to low-tack for temporary attachment.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
stock | 7010372430 |
---|---|
Part Number | 12976 |
UPC | 021200129766 |
Unit of Measure | Rolls |
UPC 11 | 02120012976 |
UPC Number | 021200129766 |
Color | Translucent |
Thickness | 2 mil |
Length | 600 yd |
Length Metric | 548.64 m |
Thickness Metric | 0.05 mm |
Width | 0.5 in |
Width Metric | 12.7 mm |
Benefit1 | |
Benefit2 | Dry edge, finger lift edge, convenience. Easy liner starting and removal. Ideal for automated tape application equipment. Tack free tape roll edges for ease of use and reduced equipment maintenance. |
Benefit3 | General purpose adhesive transfer and double coated tapes with extended liners used on a variety of high surface energy and low surface energy HSE LSE materials such as coated and uncoated papers, films, plastics, foams and metals. |
Benefit4 | Pharmaceutical, Medical, Paper and Print, Commercial Printing, Packaging, POP Point of Purchase, General Industrial |
Benefit5 | Used for sealing, splicing, bonding, mounting, attaching, holding, affixing, joining, and laminating. Paper to paper applications, small packaging, pharmaceutical outserts, seals flaps on bags or envelopes. Used on high speed presses, collators and tape a |
Color 1 | Translucent |
Dimension 1 | 1/2 in |
Dimension 2 | 600 yd |
Adhesion To Foam | 4 |
Adhesion To Hse | Medium |
Adhesion To Lse | Low |
Adhesion To Metal | Medium |
Adhesive Peel Initial | 4 |
Adhesive Peel Ultimate | 5 |
Chemical Resistance | 6 |
China Rohs Below Mcv | Yes |
Type | simple |
Eu Rohs Compliant | Yes |
Faceside Adhseive Type | 400 High-Tack Acrylic |
Humidty Resistance | 8 |
Master Size Length | 600 Linear Yard |
Master Size Width | 1 Inch |
Maxmum Operating Temperature (celsius) | 82 Degree Celsius |
Maximum Operating Temperature (fahrenheit) | 180 Degree Fahrenheit |
Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
Moisture Resistance | 8 |
Nominal Adhesive Thickness (mils) | 2 Milli-inch (mil) |
Plasticizer Resistance | Low |
Primary Liner | 60 Densified Kraft Paper |
Primary Liner Color | Tan |
Primary Liner Thicknes (mils) | 3.5 Milli-inch (mil) |
Product Form | Roll |
Shear Strength At 72 Degrees F | 5 Pound-Force Per Square Inch |
Solvent Resistance | Medium |
Uv Resistance | High |
Restriction | Bulk |
Per Case | 18 |
TDS Files | 3M/tds/extended_liner_7038439.pdf |
