$328.38
Availability: Make-to-order Ships in approximately 14 days.
- Buy 20 for $318.03 each and save 3%
- Buy 40 for $305.11 each and save 7%

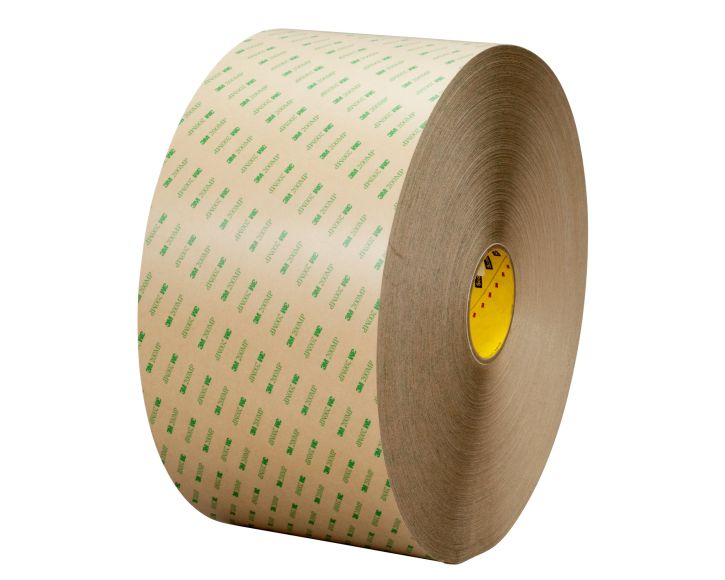

3M™ Adhesive Transfer Tape 9668MP is a 5.0 mil 200MP high performance acrylic adhesive on a 6.2 mil 83 lb polycoated kraft paper liner
Manufacturer
3M
SKU
70006169364
Selling Unit
Rolls
Part
24644
UPC
021200246449
Stock
7010334211
Grand Total : $1,313.52
Industry standard for bonding high surface energy substrates which require excellent heat and solvent resistance.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
stock | 7010334211 |
---|---|
Part Number | 24644 |
UPC | 021200246449 |
Unit of Measure | Rolls |
UPC 11 | 02120024644 |
UPC Number | 021200246449 |
Color | Clear |
Thickness | 5 mil |
Length | 60 yd |
Length Metric | 54.86 m |
Thickness Metric | 0.1 mm |
Width | 12 in |
Width Metric | 304.8 mm |
Benefit1 | |
Benefit2 | Ideal for graphic and nameplate attachment. Easy to die-cut and process. |
Benefit3 | Excellent moisture and solvent resistance. Excellent high temperature resistance and shear strength. UV resistant. Easy to apply. Not messy. Easily die-cutable. |
Benefit4 | Graphic Attachment, Nameplate Attachment, Automotive, Appliance, Aerospace, General Industrial, Electronics, Transportation |
Benefit5 | This is good for adhering, joining, affixing, bonding, mounting, holding, laminating and attaching. Medium and High Surface Energy Plastic bonding. Metal bonding. |
Color 1 | Clear |
Dimension 1 | 12 in |
Dimension 2 | 60 yd |
Adhesion To Foam | 3 |
Adhesion To Hse | 9 |
Adhesion To Lse | 1 |
Adhesion To Metal | 10 |
Adhesive Thickness (mils) | 5 Milli-inch (mil) |
Adhesive Type | 200MP High-Performance Acrylic |
Carrier Thickness (mils) | >=0 Milli-inch (mil) |
Chemical Resistance | 9 |
China Rohs Below Mcv | Yes |
Type | simple |
Eu Rohs Compliant | Yes |
Faceside Adhseive Thickness (mils) | 5 Milli-inch (mil) |
Faceside Adhseive Type | 200MP High Performance Acrylic |
Humidty Resistance | High |
Liner Color | Tan |
Liner Thickness | 6.2 Milli-inch (mil) |
Liner Type | 83 Polycoated Kraft |
Master Size Length | 180 Linear Yard |
Master Size Width | 54 Inch |
Maxmum Operating Temperature (celsius) | 204 Degree Celsius |
Maximum Operating Temperature (fahrenheit) | 400 Degree Fahrenheit |
Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
Moisture Resistance | High |
Nominal Adhesive Thickness (mils) | 5 Milli-inch (mil) |
Plasticizer Resistance | Low |
Primary Liner | 83 Polycoated Kraft Paper |
Primary Liner Thicknes (mils) | 6.2 Milli-inch (mil) |
Product Form | Roll |
Secondary Liner | Not Applicable |
Secondary Liner Thickness (mils) | 0 Milli-inch (mil) |
Solvent Resistance | 9 |
Top Liner Material | 83 Polycoated Kraft Paper |
Total Thickness | 5 Milli-inch (mil) |
Uv Resistance | High |
Restriction | Bulk |
Per Case | 4 |
TDS Files | 3M/tds/70070938587.pdf |
