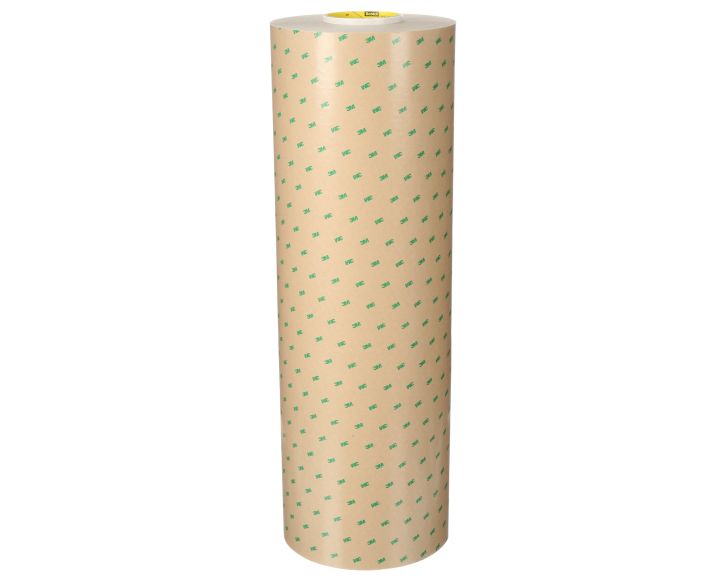

3M™ ADHESIVE TRANSFER TAPE 9502, CLEAR, 12 IN X 60 YD, 2 MIL, 4 ROLLS PER CASE
Stock : 7010300053
List:
$182.93
/Rolls
Your Price:
$139.39
/Rolls
- Buy 20 for $135.00 each and save 3%
- Buy 40 for $129.52 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 4.
Grand Total : $557.56
Manufacturer :
3M
SKU :
70006169166
Part :
24624
UPC :
021200246241
Selling Unit :
Rolls
Stock :
7010300053
3M™ Adhesive Transfer Tape 9502 is a 220 industrial acrylic adhesive with 4.2 mil 58 lb polycoated kraft liner.
Economical choice for general industrial bonding of metals, painted metals, and high-surface-energy plastics.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
| Per Case | 4 |
|---|---|
| Master Size Width | 48 Inch |
| Master Size Length | 180 Linear Yard |
| Liner Thickness | 4.2 Milli-inch (mil) |
| Liner Color | Tan |
| Maximum Operating Temperature (fahrenheit) | 350 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Moisture Resistance | High |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 177 Degree Celsius |
| Uv Resistance | High |
| Type | simple |
| Total Thickness | 2 Milli-inch (mil) |
| Top Liner Material | 58 Polycoated Kraft Paper |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 4.2 Milli-inch (mil) |
| Primary Liner | 58 Polycoated Kraft Paper |
| Plasticizer Resistance | Low |
| Restriction | Bulk |
| Secondary Liner | Not Applicable |
| Solvent Resistance | 8 |
| Secondary Liner Thickness (mils) | 0 Milli-inch (mil) |
| Humidty Resistance | High |
| Faceside Adhseive Thickness (mils) | 2 Milli-inch (mil) |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 220 Industrial Acrylic |
| China Rohs Below Mcv | Yes |
| Carrier Thickness (mils) | >=0 Milli-inch (mil) |
| Chemical Resistance | 8 |
| UPC 11 | 02120024624 |
| Liner Type | 58 Polycoated Kraft |
| UPC Number | 021200246241 |
| Color | Clear |
| Thickness | 2 mil |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Thickness Metric | 0.05 mm |
| Width | 12 in |
| Width Metric | 304.8 mm |
| Benefit1 | |
| Benefit2 | Economical graphic attachment and general industrial joining. Easy to die-cut and process. |
| Benefit3 | Good moisture and solvent resistance. Good high temperature resistance and shear strength. UV resistant. Easy to apply. Not messy. Easily die-cutable. |
| Benefit4 | Graphic Attachment, Nameplate Attachment, Automotive, Appliance, Aerospace, General Industrial, Electronics, Transportation |
| Benefit5 | This is good for adhering, joining, affixing, bonding, mounting, holding, laminating and attaching. Medium and High Surface Energy Plastic bonding. Metal bonding. |
| Color 1 | Clear |
| Dimension 1 | 12 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 2 |
| Adhesion To Hse | 7 |
| Adhesion To Lse | 1 |
| Adhesion To Metal | 8 |
| Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Adhesive Type | 220 Industrial Acrylic |
| TDS Files | 3M/tds/70070938645.pdf |
