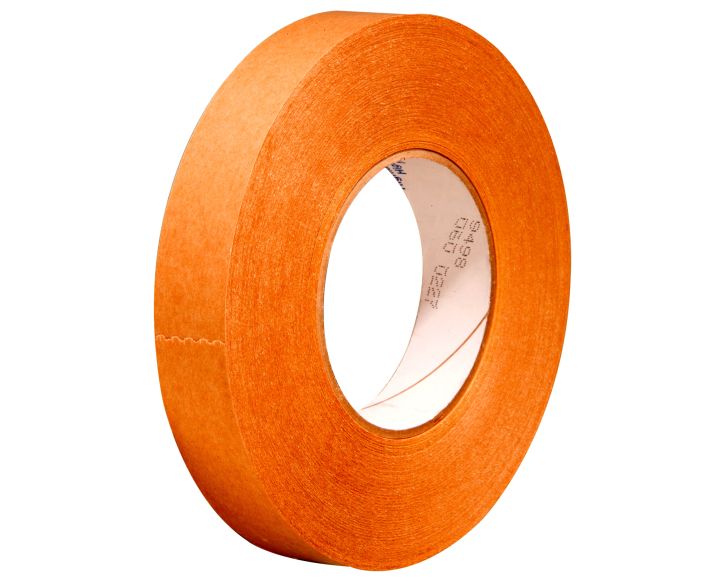

3M™ Adhesive Transfer Tape 9498, Clear, 1 1/2 in x 120 yd, 2 mil, 24 rolls per case
Stock : 7010373451
List:
$58.35
/Rolls
Your Price:
$44.46
/Rolls
- Buy 120 for $43.06 each and save 3%
- Buy 240 for $41.31 each and save 7%
Availability:
In stock
Ships In 7-10 Days
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 24.
Grand Total : $1,067.04
Manufacturer :
3M
SKU :
70006121928
Part :
84099
UPC :
021200840999
Selling Unit :
Rolls
Stock :
7010373451
Ideal for Rigorous Splicing Applications
Once bonded, 3M™ Adhesive Transfer Tape 9498 provides excellent peel and shear strength
| Per Case | 24 |
|---|---|
| Master Size Width | 48 Inch |
| Master Size Length | 360 Linear Yard |
| Liner Thickness | 3.5 Milli-inch (mil) |
| Liner Color | Tan |
| Maximum Operating Temperature (fahrenheit) | 250 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Moisture Resistance | 8 |
| Minimum Operating Temperature (fahrenheit) | -60 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 121 Degree Celsius |
| Tape Type | Adhesive Transfer |
| Uv Resistance | High |
| Type | simple |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 3.5 Milli-inch (mil) |
| Primary Liner | 60 Densified Kraft Paper |
| Plasticizer Resistance | Low |
| Restriction | Bulk |
| Secondary Liner | Not Applicable |
| Solvent Resistance | 5 |
| Humidty Resistance | 8 |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 400 High-Tack Acrylic |
| China Rohs Below Mcv | Yes |
| Chemical Resistance | 5 |
| UPC 11 | 02120084099 |
| Liner Type | 60 Densified Kraft |
| UPC Number | 021200840999 |
| Shear Strength At 72 Degrees F | 5 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 2 mil |
| Length | 120 yd |
| Length Metric | 109.72 m |
| Thickness Metric | 0.05 mm |
| Width | 1.5 in |
| Width Metric | 38.1 mm |
| Benefit1 | Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications |
| Benefit2 | Bonds well to most substrates, including low surface energy plastics |
| Benefit3 | Moderate temperature resistance up to 250?F (121?C) |
| Benefit4 | 60lb Densified Kraft (DK) liner for ease in die-cutting operations |
| Benefit5 | Conformable to irregular surfaces |
| Color 1 | Clear |
| Dimension 1 | 1.5 in |
| Dimension 2 | 120 yd |
| Adhesion To Foam | 4 |
| Adhesion To Hse | 5 |
| Adhesion To Lse | 5 |
| Adhesion To Metal | 5 |
| Adhesive Peel Ultimate | 5 |
| Adhesive Thickness (mils) | 2 Milli-inch (mil) |
| Adhesive Type | 400 High-Tack Acrylic |
| TDS Files | 3M/tds/70070937399.pdf |
