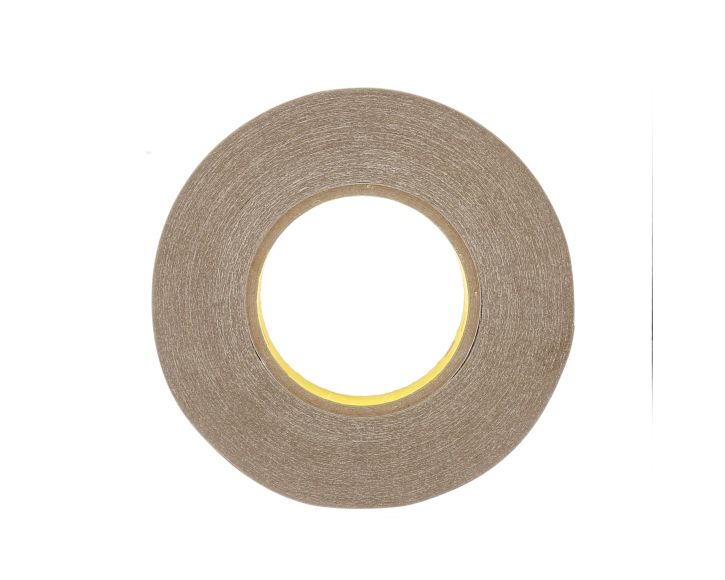

3M™ ADHESIVE TRANSFER TAPE 9485PC, CLEAR, 36 IN X 60 YD, 5 MIL, 1 ROLL PER CASE
Stock : 7010372834
List:
$2,668.46
/Rolls
Your Price:
$2,033.37
/Rolls
- Buy 5 for $1,969.33 each and save 3%
- Buy 10 for $1,889.27 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 1.
Grand Total : $2,033.37
Manufacturer :
3M
SKU :
70006255668
Part :
40783
UPC :
021200407833
Selling Unit :
Rolls
Stock :
7010372834
5.0 mil 350 high performance acrylic adhesive on a 4.2 mil 62 lb polycoated kraft paper liner
Large selection of high quality laminating adhesives with high tack, for applications such as graphic attachment, rotary die-cutting, and decorative trim applications.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
| Per Case | 1 |
|---|---|
| Master Size Width | 48 Inch |
| Master Size Length | 180 Linear Yard |
| Liner Thickness | 4.2 Milli-inch (mil) |
| Liner Color | Tan |
| Maximum Operating Temperature (fahrenheit) | 450 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Moisture Resistance | High |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 232 Degree Celsius |
| Tape Type | Adhesive Transfer |
| Uv Resistance | Medium |
| Type | simple |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 4.2 Milli-inch (mil) |
| Primary Liner | 62 Polycoated Kraft Paper |
| Plasticizer Resistance | Medium |
| Restriction | Bulk |
| Secondary Liner | Not Applicable |
| Solvent Resistance | 8 |
| Humidty Resistance | 9 |
| Eu Rohs Compliant | Yes |
| Faceside Adhseive Type | 350 High Performance Acrylic |
| China Rohs Below Mcv | Yes |
| Carrier Thickness (mils) | >=0 Milli-inch (mil) |
| Chemical Resistance | 8 |
| UPC 11 | 02120040783 |
| Liner Type | 62 Polycoated Kraft Paper PCK |
| UPC Number | 021200407833 |
| Shear Strength At 72 Degrees F | 8 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 5 mil |
| Length | 60 yd |
| Length Metric | 54.86 m |
| Thickness Metric | 0.1 mm |
| Width | 36 in |
| Width Metric | 914.4 mm |
| Benefit1 | |
| Benefit2 | High tack and shear strength. Excellent temperature and solvent resistance. Excellent adhesion to plastics and foams. Used for joining materials that are relatively smooth, thin and have low residual stress. |
| Benefit3 | Contains a fiber reinforced adhesive which is important for roll stability in narrow widths. Designed for temperature exposure to 450 degree Fahrenheit for short periods of time. Ideal for bonding a wide variety of similar and dissimilar materials. |
| Benefit4 | General Industrial Applications |
| Benefit5 | This is good for adhering, joining, affixing, bonding, mounting, holding, laminating, and splicing. Laminating high performance plastics and difficult to bond surfaces or substrates. Splicing metal coils. |
| Dimension 1 | 36 in |
| Dimension 2 | 60 yd |
| Adhesion To Foam | 9 |
| Adhesion To Hse | 10 |
| Adhesion To Lse | 10 |
| Adhesion To Metal | 9 |
| Adhesive Peel Ultimate | 9 |
| Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Adhesive Type | 350 High Performance Acrylic |
| TDS Files | 3M/tds/0351.pdf |
