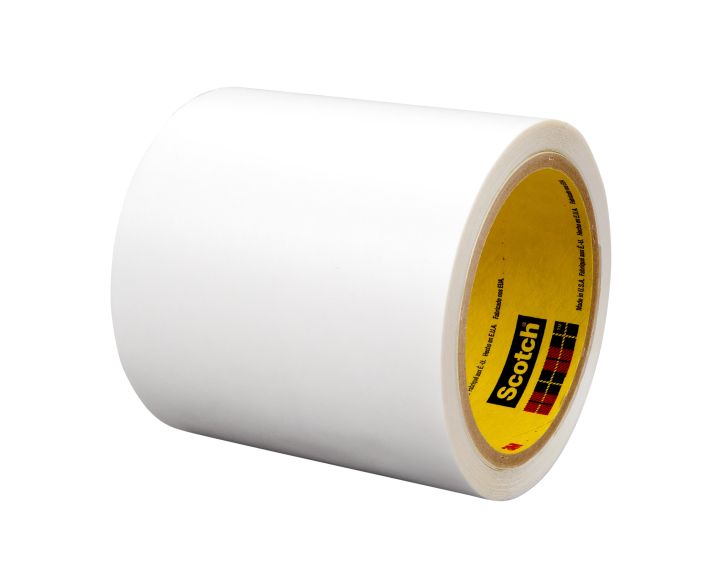

3M™ Adhesive Transfer Tape 9485EK, Clear, 3/4 in x 180 yd 5 mil, 12 Roll/ Case
Stock : 7000049218
List:
$197.02
/Rolls
Your Price:
$150.13
/Rolls
- Buy 60 for $145.40 each and save 3%
- Buy 120 for $139.49 each and save 7%
Availability:
Make-to-order
Ships in approximately 14 days.
Quantity Guidelines:
Priced per Rolls s, must be ordered in multiples of 12.
Grand Total : $1,801.56
Manufacturer :
3M
SKU :
70006415767
Part :
24824
UPC :
051115248245
Selling Unit :
Rolls
Stock :
7000049218
5.0 mil 350 high performance acrylic adhesive on a tear resistant 6.0 mil 78 lb extensible polycoated kraft paper liner
Large selection of high quality laminating adhesives with high tack, for applications such as graphic attachment, rotary die-cutting, and decorative trim applications.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
3M™ Adhesive Transfer Tapes are rolls of pressure-sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off.
| Per Case | 12 rolls |
|---|---|
| Master Size Width | 48 Inch |
| Master Size Length | 180 Linear Yard |
| Liner Thickness | 6 Milli-inch (mil) |
| Liner Color | Tan |
| Maximum Operating Temperature (fahrenheit) | 450 Degree Fahrenheit |
| Nominal Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Moisture Resistance | High |
| Minimum Operating Temperature (fahrenheit) | -40 Degree Fahrenheit |
| Maxmum Operating Temperature (celsius) | 232 Degree Celsius |
| Tape Type | Adhesive Transfer |
| Uv Resistance | Medium |
| Type | simple |
| Product Form | Roll |
| Primary Liner Thicknes (mils) | 6 Milli-inch (mil) |
| Primary Liner | 78 Extensible Polycoated Kraft Paper |
| Plasticizer Resistance | Medium |
| Solvent Resistance | 8 |
| Humidty Resistance | 9 |
| Faceside Adhseive Type | 350 High Performance Acrylic |
| Chemical Resistance | 8 |
| UPC 11 | 05111524824 |
| Liner Type | 78 Extensible Kraft Paper EK |
| UPC Number | 051115248245 |
| Shear Strength At 72 Degrees F | 8 Pound-Force Per Square Inch |
| Color | Clear |
| Thickness | 5 mil |
| Length | 180 yd |
| Length Metric | 164.59 m |
| Thickness Metric | 0.1 mm |
| Width | 0.75 in |
| Width Metric | 19.05 mm |
| Benefit1 | |
| Benefit2 | High tack and shear strength. Excellent temperature and solvent resistance. Excellent adhesion to plastics and foams. Used for joining materials that are relatively smooth, thin and have low residual stress. |
| Benefit3 | General Industrial Applications |
| Benefit4 | This is good for adhering, joining, affixing, bonding, mounting, holding, laminating, and splicing. Laminating high performance plastics and difficult to bond surfaces or substrates. Splicing metal coils. |
| Dimension 1 | 3/4 in |
| Dimension 2 | 180 yd |
| Adhesion To Foam | 9 |
| Adhesion To Hse | 10 |
| Adhesion To Lse | 10 |
| Adhesion To Metal | 9 |
| Adhesive Peel Ultimate | 9 |
| Per Pad | 25 Sheets |
| Adhesive Thickness (mils) | 5 Milli-inch (mil) |
| Adhesive Type | 350 High Performance Acrylic |
| TDS Files | 3M/tds/0351.pdf |
